| Horse Power | 22 HP |
|---|---|
| Wheel Drive | 4WD |
| Gear Box | 6 Forward + 2 Reverse |
| Clutch | Single Clutch |
| Lifting Capacity | 500 kg / 750 kg |
| Overall Length (mm) | 2,695 mm |
| Overall Width (mm) | 1,115 mm |
| Wheelbase (mm) | 1,420 mm |
| Transmission | Sliding Mesh |
| GVW / GCW (Kgs) | 840 kg |
| Height | 1,150 mm |

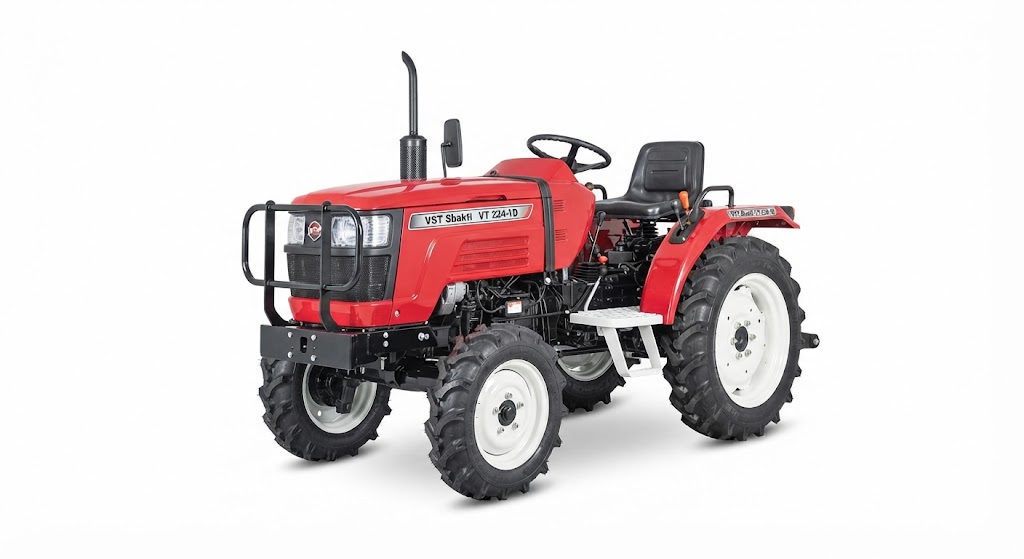

The VST Shakti VT 224-1D is a compact 22 HP 4WD tractor designed particularly for orchard farming, horticulture and small agricultural operations. Its 980 cc, 3-cylinder engine is paired with a 6F+2R gearbox, while the 4WD system provides better traction in challenging field conditions. The tractor also ...
| Variant Name | Price |
|---|---|
| VST Shakti VT 224-1D 4WD | ₹3.7 Lakh |
| Rear | 8.3 x 20 / 8 x 18 |
|---|---|
| Battery Type | Lead-Acid |
| Fuel Type | Diesel |
| Horse Power Hp | 22 HP |
| Torque Nm | 53.93 Nm / 5.5 kg-m |
| Clutch Type | Single Dry Type |
| Engine Rated Rpm | 3000 RPM |
| Transmission Type | Selective Sliding Gear / Sliding Mesh |
| Engine Capacity Cc | 979.5 cc |
| Gearbox | 6 Forward + 2 Reverse |
| Number Of Tyre | 4 |
| Front Tyre | 6 x 12 / 5 x 12 |
| Rear Tyre | 8.3 x 20 / 8 x 18 |
| Seating Layout | Single Seat |
| Engine Location | Front Mounted |
| Body Option | Open Tractor |
| Chassis Type | Compact Tractor Chassis |
| Seating Capacity | 1 Person |
| Fuel Tank Litres | 18 Litres |
| Front Brakes | Waterproof Internal Expanding Shoe Type |
| Rear Brakes | Waterproof Internal Expanding Shoe Type |
| Reverse Speed Kmph | 1.67 – 7.36 km/h |
| Forward Speed Kmph | 1.31 – 19.3 km/h |
| Alternator | 12V, 40 Amp |
| Fuel Pump | Bosch Fuel Injection Pump |
| Air Filter | Dry Type |
|---|---|
| Cooling | Water Cooled Radiator with Compensatory Tank |
| Battery | 12V, 35 Ah |
| Pto Type | Multi-Speed PTO |
| Rpm | 3000 RPM |
| 3 Point Linkage | Category I |
| Warranty | 2 Years / 2,000 Hours |
| Additional Features | 4WD, ADDC Hydraulic System, Category-I 3-Point Linkage, Dual-Speed PTO, Differential Lock |
| Accessories | Tools, Bumper, Ballast Weight, Top Link, Canopy |
| Gross Vehicle Weight | 840 kg |
| Motor Type | Diesel Engine |
| Power Peak | 22 HP |
| Tyres | Agricultural Tyres |
| Head Lights | 12V Lighting System |
| Emission Free | No |
| Maximum Speed | 19.3 km/h |
| Cabin Type | Open Cabin |
| Track Width | 740 mm Adjustable / 890 mm Standard |
| Turning Radius | 2.3 m |
| Steering System | Mechanical Steering |
| Ground Clearance | 205 mm |
| Brake Type | Waterproof Internal Expanding Shoe Type |
| Parking | Parking Brake |
| Battery Energy | Approx. 0.42 kWh |
