| Horse Power | 40 HP |
|---|---|
| Wheel Drive | 2WD / 4WD |
| Gear Box | 8 Forward + 2 Reverse |
| Clutch | Single / Dual Clutch |
| Lifting Capacity | 1,200 kg |
| Overall Length (mm) | 3,660 mm |
| Overall Width (mm) | 1,740 mm |
| Wheelbase (mm) | 1,960 mm |
| Transmission | Sliding Mesh |
| GVW / GCW (Kgs) | 1,930 kg |
| Height | 2,250 mm |

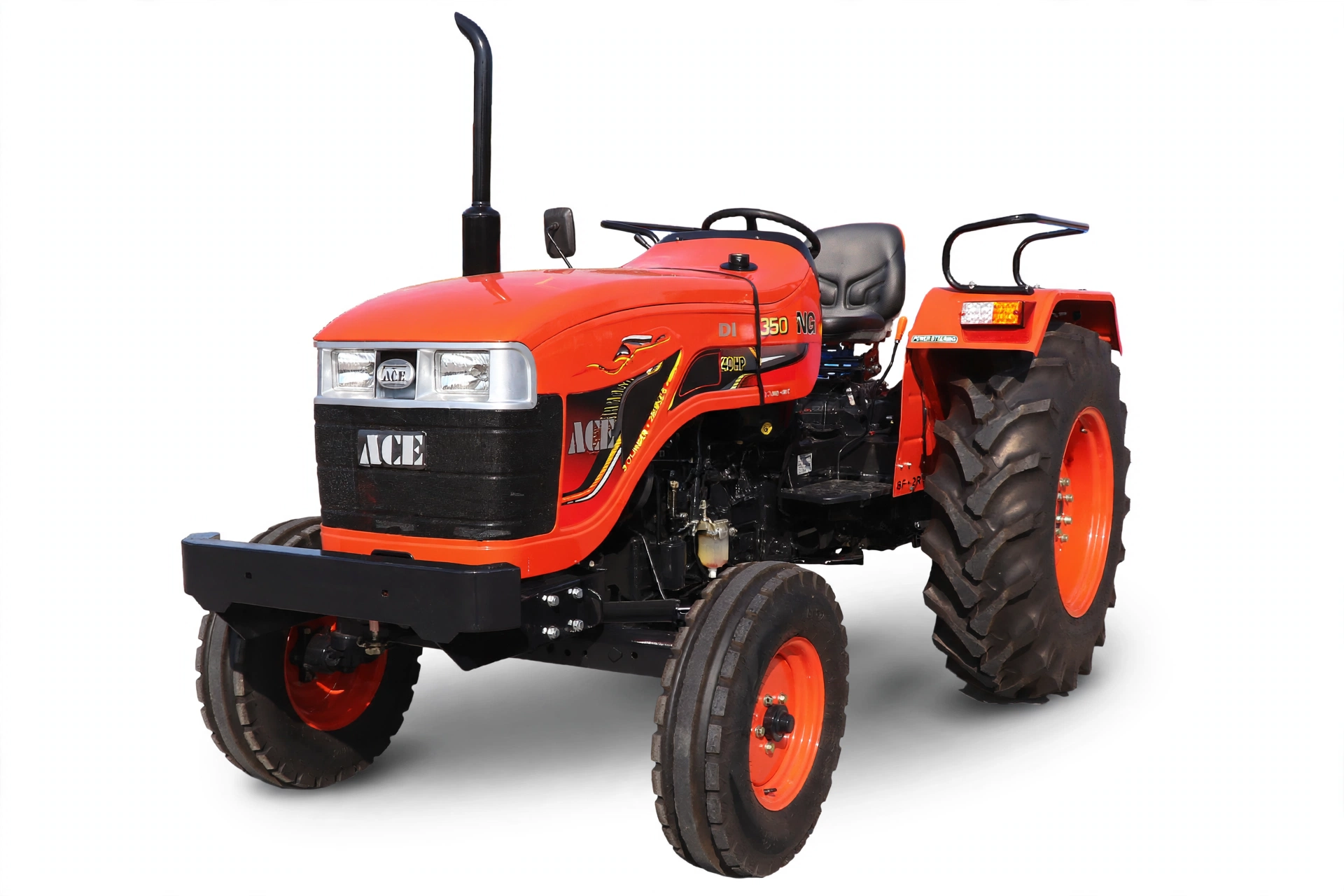

The ACE DI 350 NG is a 40 HP tractor designed for farming, haulage and light commercial applications. It comes with a 3-cylinder, 2,858 cc diesel engine producing 40 HP at 1,800 RPM. The tractor features a 2WD drivetrain, constant-mesh gearbox with 8 forward and 2 reverse gears, an...
| Variant Name | Price |
|---|---|
| ACE DI 350 NG 2WD | ₹5.2 Lakh |
| Rear | Rear Axle with Agricultural Tyres |
|---|---|
| Battery Type | Lead Acid |
| Fuel Type | Diesel |
| Horse Power Hp | 40 HP |
| Torque Nm | 180 Nm |
| Clutch Type | Single / Dual Clutch |
| Engine Rated Rpm | 1,800 RPM |
| Transmission Type | Sliding Mesh |
| Engine Capacity Cc | 2,858 cc |
| Gearbox | 8 Forward + 2 Reverse |
| Number Of Tyre | 4 |
| Front Tyre | 6.00-16 (2WD) / 8.00-18 (4WD) |
| Rear Tyre | 13.6-28 |
| Seating Layout | Single Operator Seat |
| Engine Location | Front |
| Body Option | Open Tractor |
| Chassis Type | Tractor Chassis |
| Seating Capacity | 1 |
| Fuel Tank Litres | 55 Litres |
| Front Brakes | Oil Immersed Disc Brakes |
| Rear Brakes | Oil Immersed Disc Brakes |
| Forward Speed Kmph | 25 kmph |
| Alternator | 12V, 42A |
|---|---|
| Fuel Pump | Direct Injection |
| Air Filter | Dry Air Cleaner with Clogging Sensor |
| Cooling | Water Cooled |
| Battery | 12V, 88 Ah |
| Pto Type | Independent PTO, 540 RPM |
| 3 Point Linkage | Category II |
| Warranty | 2 Years / 2,000 Hours |
| Additional Features | Automatic Draft Control, 3-Point Linkage, Independent PTO, Front Tow Hook, Trailer Socket, Adjustable Driver Seat |
| Accessories | Top Link, Hitch, Bumper, Tool Kit, Canopy, Ballast Weight |
| Gross Vehicle Weight | 1,930 kg (2WD) / 2,170 kg (4WD) |
| Tyres | Agricultural Tyres |
| Head Lights | Standard Tractor Headlamps |
| Emission Free | No |
| Maximum Speed | 25 kmph |
| Cabin Type | Open Operator Station |
| Track Width | 1,265–1,495 mm |
| Turning Radius | 6.03–6.42 m |
| Steering System | Mechanical / Power Steering |
| Ground Clearance | 420 mm |
| Brake Type | Hydraulic, Oil Immersed Disc Brakes |
| Parking | Mechanical Hand Lever |
