| Horse Power | 29 HP |
|---|---|
| Wheel Drive | 4WD |
| Gear Box | 12 Forward + 12 Reverse |
| Clutch | Single Plate Dry Friction Clutch |
| Lifting Capacity | 980 kg |
| Overall Length (mm) | 2,750 mm |
| Overall Width (mm) | 1,100 mm |
| Wheelbase (mm) | 1,610 mm |
| Transmission | Constant Mesh |
| Mileage | 20–25 km/l |
| Height | 1,850 mm |

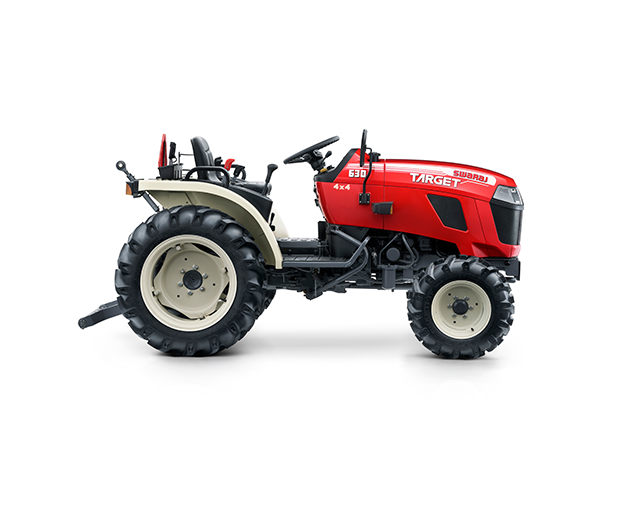

The Swaraj Target 630 4WD is a compact, lightweight tractor designed mainly for orchard farming, spraying, interculture operations and other applications where a narrow turning radius and compact dimensions are important. It uses a 29 HP, 3-cylinder Yanmar diesel engine with 1,331 cc displacement and produces 87 Nm of maximum torque.
...| Battery Type | Lead Acid |
|---|---|
| Fuel Type | Diesel |
| Horse Power Hp | 29 HP |
| Torque Nm | Approx. 108 Nm |
| Clutch Type | Single Plate Dry Friction Clutch |
| Engine Rated Rpm | 2800 RPM |
| Transmission Type | Constant Mesh |
| Engine Capacity Cc | 1331 cc |
| Gearbox | 12 Forward + 12 Reverse |
| Number Of Tyre | 4 |
| Front Tyre | 6.00 x 12 |
| Rear Tyre | 8.30 x 20 |
| Seating Layout | Single Seat |
| Engine Location | Front |
| Body Option | Open Tractor |
| Chassis Type | Tractor Chassis |
| Seating Capacity | 1 |
| Fuel Tank Litres | 27 Litres |
| Front Brakes | Oil Immersed Disc Brakes |
| Rear Brakes | Oil Immersed Disc Brakes |
| Reverse Speed Kmph | Approx. 24 km/h |
| Forward Speed Kmph | 24.4 km/h |
| Alternator | 12V |
| Fuel Pump | Inline Fuel Injection Pump |
| Air Filter | Dry Type |
| Cooling | Water Cooled |
|---|---|
| Battery | 12V |
| Pto Type | Independent PTO |
| Rpm | 2800 RPM |
| 3 Point Linkage | Category I |
| Warranty | 6 Years |
| Additional Features | 4WD, Power Steering, Independent PTO, Category-I 3-Point Linkage, Oil-Immersed Brakes |
| Accessories | Tool Kit, Hitch, Drawbar, Top Link |
| Range | 250–300 km |
| Motor Type | Diesel Engine |
| Power Peak | Approx. 21.6 kW |
| Tyres | Agricultural Tyres |
| Head Lights | LED Headlamps |
| Emission Free | No |
| Regenerative Braking | No |
| Real Range | 200–250 km |
| Maximum Speed | 24.4 km/h |
| Cabin Type | Open |
| Track Width | Adjustable |
| Turning Radius | Approx. 2.5 m |
| Steering System | Power Steering |
| Ground Clearance | Approx. 300 mm |
| Brake Type | Oil Immersed Disc Brakes |
| Parking | Mechanical Parking Brake |
